openlcb::SNIPHandler Class Reference

Handler for the Simple Node Information Protocol requests. More...

#include <SimpleNodeInfo.hxx>

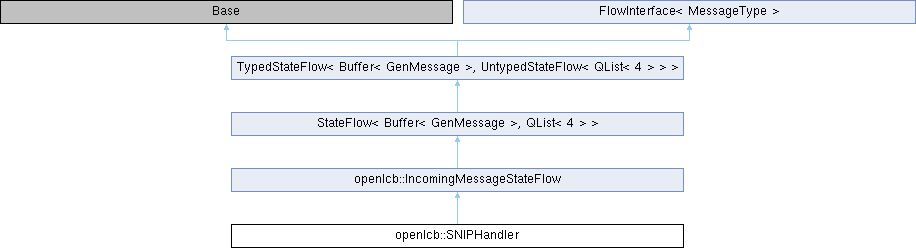

Inheritance diagram for openlcb::SNIPHandler:

Public Member Functions
	SNIPHandler (If *iface, Node *node, SimpleInfoFlow *response_flow)
Action	entry () OVERRIDE
	Entry into the StateFlow activity.
Action	send_response_request ()
Public Member Functions inherited from openlcb::IncomingMessageStateFlow
	IncomingMessageStateFlow (If *iface)
If *	iface ()
GenMessage *	nmsg ()
	Returns the NMRAnet message we received.
Public Member Functions inherited from StateFlow< Buffer< GenMessage >, QList< 4 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Attributes
Node *	node_
SimpleInfoFlow *	responseFlow_

Static Private Attributes
static const SimpleInfoDescriptor	SNIP_RESPONSE []
	Defines the SNIP response fields.
static const SimpleInfoDescriptor	SNIP_STATIC_RESPONSE []
	Defines the SNIP response fields without dynamic file.

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.

Detailed Description

Handler for the Simple Node Information Protocol requests.

Uses the generic SimpleInfoProtocol handler with a specific response structure (SNIPHandler::SNIP_RESPONSE) to assemble the necessary response packets.

Definition at line 56 of file SimpleNodeInfo.hxx.

Constructor & Destructor Documentation

SNIPHandler()

openlcb::SNIPHandler::SNIPHandler ( If *  iface, Node *  node, SimpleInfoFlow *  response_flow  )

inline

Definition at line 59 of file SimpleNodeInfo.hxx.

~SNIPHandler()

openlcb::SNIPHandler::~SNIPHandler ( )

inline

Definition at line 69 of file SimpleNodeInfo.hxx.

Member Function Documentation

entry()

Action openlcb::SNIPHandler::entry ( )

inlinevirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns

function pointer to next state

Implements TypedStateFlow< MessageType, Base >.

Definition at line 75 of file SimpleNodeInfo.hxx.

send_response_request()

Action openlcb::SNIPHandler::send_response_request ( )

inline

Definition at line 84 of file SimpleNodeInfo.hxx.

Member Data Documentation

node_

Node* openlcb::SNIPHandler::node_

private

Definition at line 98 of file SimpleNodeInfo.hxx.

responseFlow_

SimpleInfoFlow* openlcb::SNIPHandler::responseFlow_

private

Definition at line 99 of file SimpleNodeInfo.hxx.

SNIP_RESPONSE

const SimpleInfoDescriptor openlcb::SNIPHandler::SNIP_RESPONSE

staticprivate

Initial value:

=
{
    {SimpleInfoDescriptor::LITERAL_BYTE, 4, 0, nullptr},
    {SimpleInfoDescriptor::C_STRING, 0, 0, SNIP_STATIC_DATA.manufacturer_name},
    {SimpleInfoDescriptor::C_STRING, 0, 0, SNIP_STATIC_DATA.model_name},
    {SimpleInfoDescriptor::C_STRING, 0, 0, SNIP_STATIC_DATA.hardware_version},
    {SimpleInfoDescriptor::C_STRING, 0, 0, SNIP_STATIC_DATA.software_version},






    {SimpleInfoDescriptor::LITERAL_BYTE, 2, 0, nullptr},
    {SimpleInfoDescriptor::LITERAL_BYTE, 0, 0, nullptr},
    {SimpleInfoDescriptor::LITERAL_BYTE, 0, 0, nullptr},

    {SimpleInfoDescriptor::END_OF_DATA, 0, 0, 0}
}

Defines the SNIP response fields.

Definition at line 94 of file SimpleNodeInfo.hxx.

SNIP_STATIC_RESPONSE

const SimpleInfoDescriptor openlcb::SNIPHandler::SNIP_STATIC_RESPONSE

staticprivate

Initial value:

=
{
    {SimpleInfoDescriptor::LITERAL_BYTE, 4, 0, nullptr},
    {SimpleInfoDescriptor::C_STRING, 0, 0, SNIP_STATIC_DATA.manufacturer_name},
    {SimpleInfoDescriptor::C_STRING, 0, 0, SNIP_STATIC_DATA.model_name},
    {SimpleInfoDescriptor::C_STRING, 0, 0, SNIP_STATIC_DATA.hardware_version},
    {SimpleInfoDescriptor::C_STRING, 0, 0, SNIP_STATIC_DATA.software_version},
    {SimpleInfoDescriptor::LITERAL_BYTE, 2, 0, nullptr},
    {SimpleInfoDescriptor::LITERAL_BYTE, 0, 0, nullptr},
    {SimpleInfoDescriptor::LITERAL_BYTE, 0, 0, nullptr},
    {SimpleInfoDescriptor::END_OF_DATA, 0, 0, 0}
}

Defines the SNIP response fields without dynamic file.

Definition at line 96 of file SimpleNodeInfo.hxx.

---

The documentation for this class was generated from the following files:

• SimpleNodeInfo.hxx
• SimpleNodeInfoResponse.cxx
