Flow to receive incoming messages of event protocol, and dispatch them to the registered event handler. More...

#include <EventServiceImpl.hxx>

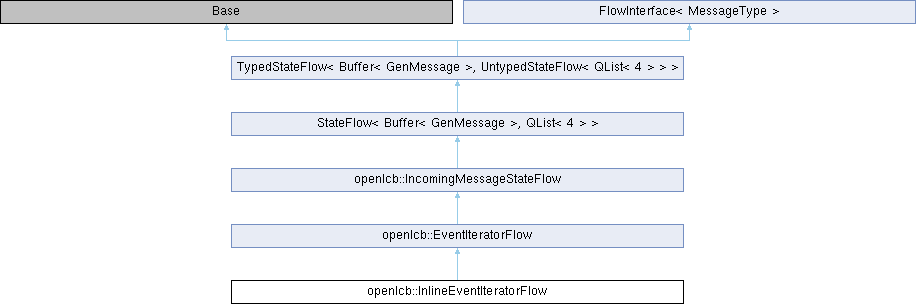

Inheritance diagram for openlcb::InlineEventIteratorFlow:

Public Member Functions
	InlineEventIteratorFlow (If iface, EventService event_service, unsigned mti_value, unsigned mti_mask)

Public Member Functions inherited from openlcb::EventIteratorFlow
	EventIteratorFlow (If iface, EventService event_service, unsigned mti_value, unsigned mti_mask)

Public Member Functions inherited from openlcb::IncomingMessageStateFlow
	IncomingMessageStateFlow (If *iface)

If *	iface ()

GenMessage *	nmsg ()
	Returns the NMRAnet message we received.

Public Member Functions inherited from StateFlow< Buffer< GenMessage >, QList< 4 > >
	StateFlow (Service *service)
	Constructor.

Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.

virtual	~TypedStateFlow ()
	Destructor.

void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.

Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Member Functions
Action	dispatch_event (const EventRegistryEntry *entry) OVERRIDE

Private Attributes
const EventRegistryEntry *	currentEntry_ {nullptr}
	The handler we need to call.

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Protected Member Functions inherited from openlcb::EventIteratorFlow
Action	entry () OVERRIDE
	Entry into the StateFlow activity.

Action	iterate_next ()

Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.

void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.

MessageType *	message ()

MessageType *	transfer_message ()
	Releases ownership of the current message.

Protected Attributes inherited from openlcb::EventIteratorFlow
EventService *	eventService_

EventReport	eventReport_
	Statically allocated structure for calling the event handlers from the main event queue.

EventIterator *	iterator_
	Iterator for generating the event handlers from the registry.

Notifiable *	incomingDone_
	This done notifiable holds a reference to the incoming message buffer.

unsigned	eventRegistryEpoch_
	The epoch of the event registry at the start of the iteration.

BarrierNotifiable	n_

EventHandlerFunction	fn_

uint8_t	countEvents_ {0}
	How many events' cost are accumulated so far.

uint16_t	mtiValue_

long long	numProcessNsec_ {0}
	Accumulator of how many msec processingthe events took.

long long	currentProcessStart_ {0}
	When the processing of the current event started.

Static Protected Attributes inherited from openlcb::EventIteratorFlow
static const int	REPORT_COUNT = 100

Detailed Description

Flow to receive incoming messages of event protocol, and dispatch them to the registered event handler.

This flow runs on the executor of the event service (and not necessarily the interface). Its main job is to iterate through the matching event handler and call each of them for that report.

Definition at line 177 of file EventServiceImpl.hxx.

Constructor & Destructor Documentation

◆ InlineEventIteratorFlow()

openlcb::InlineEventIteratorFlow::InlineEventIteratorFlow	(	If *	iface,
		EventService *	event_service,
		unsigned	mti_value,
		unsigned	mti_mask
	)

inline

Definition at line 180 of file EventServiceImpl.hxx.

Member Function Documentation

◆ dispatch_event()

StateFlowBase::Action openlcb::InlineEventIteratorFlow::dispatch_event ( const EventRegistryEntry * entry )

privatevirtual

Reimplemented from openlcb::EventIteratorFlow.

Definition at line 293 of file EventService.cxx.

Member Data Documentation

◆ currentEntry_

const EventRegistryEntry* openlcb::InlineEventIteratorFlow::currentEntry_ {nullptr}

private

The handler we need to call.

Definition at line 190 of file EventServiceImpl.hxx.

The documentation for this class was generated from the following files:
