openlcb::FrameToGlobalMessageParser Class Reference

This class listens for incoming CAN frames of regular unaddressed global OpenLCB messages, then translates it in a generic way into a message, computing its MTI. More...

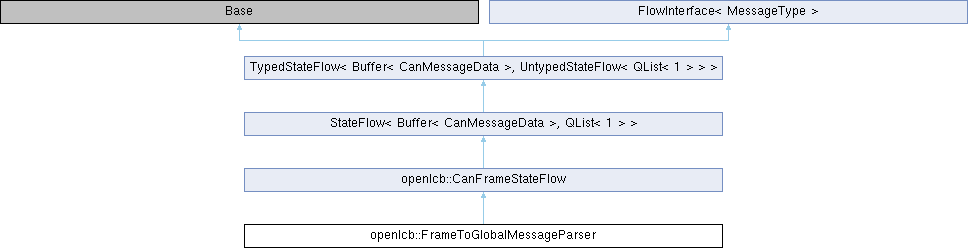

Inheritance diagram for openlcb::FrameToGlobalMessageParser:

Public Types
enum	{ CAN_FILTER , CAN_MASK }
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Public Member Functions
	FrameToGlobalMessageParser (IfCan *service)
Action	entry () OVERRIDE
	Handler entry for incoming messages.
Action	send_to_if ()
Public Member Functions inherited from openlcb::CanFrameStateFlow
	CanFrameStateFlow (IfCan *service)
IfCan *	if_can ()
Public Member Functions inherited from StateFlow< Buffer< CanMessageData >, QList< 1 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Attributes
uint32_t	id_
	CAN frame ID, saved from the incoming frame.
string	buf_
	Payload for the MTI message.

Additional Inherited Members
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.

Detailed Description

This class listens for incoming CAN frames of regular unaddressed global OpenLCB messages, then translates it in a generic way into a message, computing its MTI.

The resulting message is then passed to the generic If for dispatching.

Definition at line 488 of file IfCan.cxx.

Member Enumeration Documentation

anonymous enum

anonymous enum

Definition at line 491 of file IfCan.cxx.

Constructor & Destructor Documentation

FrameToGlobalMessageParser()

openlcb::FrameToGlobalMessageParser::FrameToGlobalMessageParser ( IfCan *  service )

inline

Definition at line 503 of file IfCan.cxx.

~FrameToGlobalMessageParser()

openlcb::FrameToGlobalMessageParser::~FrameToGlobalMessageParser ( )

inline

Definition at line 510 of file IfCan.cxx.

Member Function Documentation

entry()

Action openlcb::FrameToGlobalMessageParser::entry ( )

inlinevirtual

Handler entry for incoming messages.

Implements TypedStateFlow< MessageType, Base >.

Definition at line 517 of file IfCan.cxx.

send_to_if()

Action openlcb::FrameToGlobalMessageParser::send_to_if ( )

inline

Definition at line 534 of file IfCan.cxx.

Member Data Documentation

buf_

string openlcb::FrameToGlobalMessageParser::buf_

private

Payload for the MTI message.

Definition at line 559 of file IfCan.cxx.

id_

uint32_t openlcb::FrameToGlobalMessageParser::id_

private

CAN frame ID, saved from the incoming frame.

Definition at line 557 of file IfCan.cxx.

---

The documentation for this class was generated from the following file:

• IfCan.cxx
