openlcb::DefaultTrainNode Class Reference

Default implementation of a train node. More...

#include <TractionTrain.hxx>

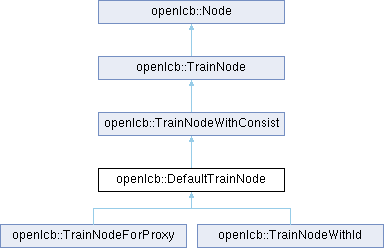

Inheritance diagram for openlcb::DefaultTrainNode:

Public Member Functions
	DefaultTrainNode (TrainService *service, TrainImpl *impl)
NodeHandle	get_controller () override
void	set_controller (NodeHandle id) override
If *	iface () override
bool	is_initialized () override
void	set_initialized () override
	Callback from the node initialization flow when the node finished initialization.
void	clear_initialized () override
	Callback from the simple stack when the node has to return to uninitialized state.
TrainImpl *	train () override
Public Member Functions inherited from openlcb::TrainNodeWithConsist
bool	function_policy (NodeHandle src, uint8_t command_byte, uint32_t fnum, uint16_t value, Notifiable *done) override
	Applies a policy to function change requests coming in from the OpenLCB bus.
void	command_hook (NodeHandle src, const Payload &p) override
	Invoked for every incoming traction command targeted to this node.
bool	add_consist (NodeID tgt, uint8_t flags) override
	Adds a node ID to the consist targets.
bool	remove_consist (NodeID tgt) override
	Removes a node ID from the consist targets.
NodeID	query_consist (int id, uint8_t *flags) override
	Returns the consist target with offset id, or NodeID(0) if there are fewer than id consist targets.
int	query_consist_length () override
	Returns the number of slaves in this consist.
Public Member Functions inherited from openlcb::Node
virtual NodeID	node_id ()=0
void	initialize ()
	Callback from the simple stack to start the initialization process.

Protected Attributes
TrainService *	service_
	Pointer to the traction service.
TrainImpl *	train_
	Pointer to the train implementation object.

Private Attributes
unsigned	isInitialized_: 1
	Node is initialized bit for startup transient.
NodeHandle	controllerNodeId_
	Controller node that is assigned to run this train. 0 if none.

Additional Inherited Members
Public Attributes inherited from openlcb::TrainNodeWithConsist
TypedQueue< ConsistEntry >	consistSlaves_

Detailed Description

Default implementation of a train node.

Definition at line 258 of file TractionTrain.hxx.

Constructor & Destructor Documentation

DefaultTrainNode()

openlcb::DefaultTrainNode::DefaultTrainNode	(	TrainService *	service,
		TrainImpl *	impl
	)

Definition at line 45 of file TractionTrain.cxx.

~DefaultTrainNode()

openlcb::DefaultTrainNode::~DefaultTrainNode

(

)

Definition at line 65 of file TractionTrain.cxx.

Member Function Documentation

clear_initialized()

void openlcb::DefaultTrainNode::clear_initialized ( )

inlineoverridevirtual

Callback from the simple stack when the node has to return to uninitialized state.

Implements openlcb::Node.

Definition at line 284 of file TractionTrain.hxx.

get_controller()

NodeHandle openlcb::DefaultTrainNode::get_controller ( )

inlineoverridevirtual

Returns

the last stored controller node.

Implements openlcb::TrainNode.

Definition at line 264 of file TractionTrain.hxx.

iface()

If * openlcb::DefaultTrainNode::iface ( )

overridevirtual

Implements openlcb::Node.

Definition at line 103 of file TractionTrain.cxx.

is_initialized()

bool openlcb::DefaultTrainNode::is_initialized ( )

inlineoverridevirtual

Returns

true if the node is in the initialized state.

Nodes not in initialized state may not send traffic to the bus.

Implements openlcb::Node.

Definition at line 275 of file TractionTrain.hxx.

set_controller()

void openlcb::DefaultTrainNode::set_controller ( NodeHandle  id )

inlineoverridevirtual

Parameters

id	the controller node of this train.

Implements openlcb::TrainNode.

Definition at line 269 of file TractionTrain.hxx.

set_initialized()

void openlcb::DefaultTrainNode::set_initialized ( )

inlineoverridevirtual

Callback from the node initialization flow when the node finished initialization.

Nodes are not required to implement if they are not using NodeInitializationFlow.

Reimplemented from openlcb::Node.

Definition at line 279 of file TractionTrain.hxx.

train()

TrainImpl * openlcb::DefaultTrainNode::train ( )

inlineoverridevirtual

Returns

the train implementation object for issuing control commands to this train.

Implements openlcb::TrainNode.

Definition at line 289 of file TractionTrain.hxx.

Member Data Documentation

controllerNodeId_

NodeHandle openlcb::DefaultTrainNode::controllerNodeId_

private

Controller node that is assigned to run this train. 0 if none.

Definition at line 305 of file TractionTrain.hxx.

isInitialized_

unsigned openlcb::DefaultTrainNode::isInitialized_

private

Node is initialized bit for startup transient.

Definition at line 302 of file TractionTrain.hxx.

service_

TrainService* openlcb::DefaultTrainNode::service_

protected

Pointer to the traction service.

Definition at line 296 of file TractionTrain.hxx.

train_

TrainImpl* openlcb::DefaultTrainNode::train_

protected

Pointer to the train implementation object.

Definition at line 298 of file TractionTrain.hxx.

---

The documentation for this class was generated from the following files:

• TractionTrain.hxx
• TractionTrain.cxx
