openlcb::TrainNodeWithConsist Class Reference

Intermediate class which is still abstract, but adds implementation for the consist management functions. More...

#include <TractionTrain.hxx>

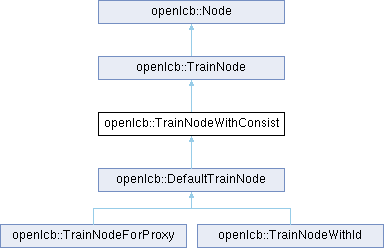

Inheritance diagram for openlcb::TrainNodeWithConsist:

Public Member Functions
bool	function_policy (NodeHandle src, uint8_t command_byte, uint32_t fnum, uint16_t value, Notifiable *done) override
	Applies a policy to function change requests coming in from the OpenLCB bus.
void	command_hook (NodeHandle src, const Payload &p) override
	Invoked for every incoming traction command targeted to this node.
bool	add_consist (NodeID tgt, uint8_t flags) override
	Adds a node ID to the consist targets.
bool	remove_consist (NodeID tgt) override
	Removes a node ID from the consist targets.
NodeID	query_consist (int id, uint8_t *flags) override
	Returns the consist target with offset id, or NodeID(0) if there are fewer than id consist targets.
int	query_consist_length () override
	Returns the number of slaves in this consist.
Public Member Functions inherited from openlcb::TrainNode
virtual TrainImpl *	train ()=0
virtual NodeHandle	get_controller ()=0
virtual void	set_controller (NodeHandle id)=0
Public Member Functions inherited from openlcb::Node
virtual NodeID	node_id ()=0
virtual If *	iface ()=0
virtual bool	is_initialized ()=0
virtual void	set_initialized ()
	Callback from the node initialization flow when the node finished initialization.
virtual void	clear_initialized ()=0
	Callback from the simple stack when the node has to return to uninitialized state.
void	initialize ()
	Callback from the simple stack to start the initialization process.

Public Attributes
TypedQueue< ConsistEntry >	consistSlaves_

Detailed Description

Intermediate class which is still abstract, but adds implementation for the consist management functions.

Definition at line 167 of file TractionTrain.hxx.

Constructor & Destructor Documentation

~TrainNodeWithConsist()

openlcb::TrainNodeWithConsist::~TrainNodeWithConsist

(

)

Definition at line 57 of file TractionTrain.cxx.

Member Function Documentation

add_consist()

bool openlcb::TrainNodeWithConsist::add_consist ( NodeID  tgt, uint8_t  flags  )

inlineoverridevirtual

Adds a node ID to the consist targets.

Returns

false if the node was already in the target list, true if it was newly added.

Implements openlcb::TrainNode.

Definition at line 186 of file TractionTrain.hxx.

command_hook()

void openlcb::TrainNodeWithConsist::command_hook ( NodeHandle  src, const Payload &  p  )

inlineoverridevirtual

Invoked for every incoming traction command targeted to this node.

Parameters

src	what node sent this command
p	command payload

Implements openlcb::TrainNode.

Definition at line 180 of file TractionTrain.hxx.

function_policy()

bool openlcb::TrainNodeWithConsist::function_policy ( NodeHandle  src, uint8_t  command_byte, uint32_t  fnum, uint16_t  value, Notifiable *  done  )

inlineoverridevirtual

Applies a policy to function change requests coming in from the OpenLCB bus.

If the policy returns false, the change will not be applied to the TrainImpl. This is used to implement consist function behavior.

Parameters

src	source node where the request came from.
command_byte	is the first byte of the payload (usually 0x01 or 0x81 depending on the REQ_LISTENER bit)
fnum	which function to set
value	what value to set this function to
done	must be notified inline if the policy application is successful. If not notified inline, then the returned value is ignored and the call is repeated after done has been invoked by the callee.

Returns

true if the function should be applied to the TrainImpl, false if it should not be applied. The default function policy applies everything.

Implements openlcb::TrainNode.

Definition at line 173 of file TractionTrain.hxx.

query_consist()

NodeID openlcb::TrainNodeWithConsist::query_consist ( int  id, uint8_t *  flags  )

inlineoverridevirtual

Returns the consist target with offset id, or NodeID(0) if there are fewer than id consist targets.

id is zero-based.

Implements openlcb::TrainNode.

Definition at line 228 of file TractionTrain.hxx.

query_consist_length()

int openlcb::TrainNodeWithConsist::query_consist_length ( )

inlineoverridevirtual

Returns the number of slaves in this consist.

Implements openlcb::TrainNode.

Definition at line 244 of file TractionTrain.hxx.

remove_consist()

bool openlcb::TrainNodeWithConsist::remove_consist ( NodeID  tgt )

inlineoverridevirtual

Removes a node ID from the consist targets.

Returns

true if the target was removed, false if the target was not on the list.

Implements openlcb::TrainNode.

Definition at line 211 of file TractionTrain.hxx.

Member Data Documentation

consistSlaves_

TypedQueue<ConsistEntry> openlcb::TrainNodeWithConsist::consistSlaves_

Definition at line 254 of file TractionTrain.hxx.

---

The documentation for this class was generated from the following files:

• TractionTrain.hxx
• TractionTrain.cxx
