openlcb::DccPacketDebugFlow Class Reference

Sends every incoming DCC packet as a custom OpenLCB message to the OpenLCB bus. More...

#include <DccDebugFlow.hxx>

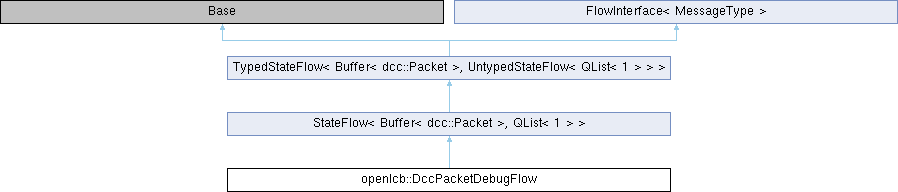

Inheritance diagram for openlcb::DccPacketDebugFlow:

Public Member Functions
	DccPacketDebugFlow (openlcb::Node *node)
Public Member Functions inherited from StateFlow< Buffer< dcc::Packet >, QList< 1 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Private Member Functions
Action	entry () override
	Entry into the StateFlow activity.
Action	msg_allocated ()

Private Attributes
openlcb::Node *	node_

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.

Detailed Description

Sends every incoming DCC packet as a custom OpenLCB message to the OpenLCB bus.

Useful only for debugging, as it generates a lot of noise on the bus. Also the packets used are totally non-standard.

Definition at line 43 of file DccDebugFlow.hxx.

Constructor & Destructor Documentation

DccPacketDebugFlow()

openlcb::DccPacketDebugFlow::DccPacketDebugFlow ( openlcb::Node *  node )

inline

Definition at line 45 of file DccDebugFlow.hxx.

Member Function Documentation

entry()

Action openlcb::DccPacketDebugFlow::entry ( )

inlineoverrideprivatevirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns

function pointer to next state

Implements TypedStateFlow< MessageType, Base >.

Definition at line 51 of file DccDebugFlow.hxx.

msg_allocated()

Action openlcb::DccPacketDebugFlow::msg_allocated ( )

inlineprivate

Definition at line 57 of file DccDebugFlow.hxx.

Member Data Documentation

node_

openlcb::Node* openlcb::DccPacketDebugFlow::node_

private

Definition at line 69 of file DccDebugFlow.hxx.

---

The documentation for this class was generated from the following file:

• DccDebugFlow.hxx
