OpenLCB Consumer class integrating a simple CDI-based configuration for a single event IDs, and an output GPIO object that will be turned on for a short period of time when the incoming event notifications arrives. More...

#include <ConfiguredConsumer.hxx>

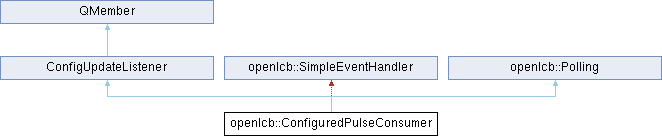

Inheritance diagram for openlcb::ConfiguredPulseConsumer:

Public Member Functions
template<class HW >
	ConfiguredPulseConsumer (Node node, const PulseConsumerConfig &cfg, const HW &, const Gpio g=HW::instance())

	ConfiguredPulseConsumer (Node node, const PulseConsumerConfig &cfg, const Gpio gpio)

UpdateAction	apply_configuration (int fd, bool initial_load, BarrierNotifiable *done) OVERRIDE
	Notifies the component that there is new configuration available for loading.

void	factory_reset (int fd) OVERRIDE
	Clears configuration file and resets the configuration settings to factory value.

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Private Member Functions
void	do_register ()
	Registers the event handler with the global event registry.

void	do_unregister ()
	Removed registration of this event handler from the global event registry.

void	handle_identify_global (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done) OVERRIDE
	Called on the need of sending out identification messages.

void	SendConsumerIdentified (EventReport event, BarrierNotifiable done)

void	handle_identify_consumer (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done) OVERRIDE
	Called on another node sending IdentifyConsumer.

void	handle_event_report (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done) OVERRIDE
	Called on incoming EventReport messages.

void	poll_33hz (WriteHelper helper, Notifiable done) OVERRIDE
	This function will be called approximately 33 times per second by the refresh loop.

Private Member Functions inherited from openlcb::SimpleEventHandler
	IGNOREFN (handle_event_report)

	IGNOREFN (handle_consumer_identified)

	IGNOREFN (handle_consumer_range_identified)

	IGNOREFN (handle_producer_identified)

	IGNOREFN (handle_producer_range_identified)

	IGNOREFN (handle_identify_consumer)

	IGNOREFN (handle_identify_producer)

Private Member Functions inherited from openlcb::EventHandler
virtual void	handle_consumer_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)
	Called on another node sending ConsumerIdentified for this event.

virtual void	handle_consumer_range_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)
	Called on another node sending ConsumerRangeIdentified.

virtual void	handle_producer_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)
	Called on another node sending ProducerIdentified for this event.

virtual void	handle_producer_range_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)
	Called on another node sending ProducerRangeIdentified for this event.

virtual void	handle_identify_producer (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)=0
	Called on another node sending IdentifyProducer.

Private Attributes
Node *	node_

const Gpio *	gpio_

EventId	event_ {0}

const PulseConsumerConfig	cfg_

uint8_t	pulseLength_ {1}

uint8_t	pulseRemaining_ {0}

Additional Inherited Members
Public Types inherited from ConfigUpdateListener
enum	UpdateAction { UPDATED = 0 , REINIT_NEEDED , REBOOT_NEEDED }
	Specifies what additional steps are needed to apply the new configuration. More...

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Private Types inherited from openlcb::EventHandler
using	EventReport = openlcb::EventReport

using	EventRegistryEntry = openlcb::EventRegistryEntry

using	EventId = openlcb::EventId

Detailed Description

OpenLCB Consumer class integrating a simple CDI-based configuration for a single event IDs, and an output GPIO object that will be turned on for a short period of time when the incoming event notifications arrives.

Useful for driving magnetic coil-based turnouts and signals.

Definition at line 147 of file ConfiguredConsumer.hxx.

Constructor & Destructor Documentation

◆ ConfiguredPulseConsumer() [1/2]

template<class HW >

openlcb::ConfiguredPulseConsumer::ConfiguredPulseConsumer	(	Node *	node,
		const PulseConsumerConfig &	cfg,
		const HW &	,
		const Gpio *	g = `HW::instance()`
	)

inline

Definition at line 153 of file ConfiguredConsumer.hxx.

◆ ConfiguredPulseConsumer() [2/2]

openlcb::ConfiguredPulseConsumer::ConfiguredPulseConsumer	(	Node *	node,
		const PulseConsumerConfig &	cfg,
		const Gpio *	gpio
	)

inline

Definition at line 162 of file ConfiguredConsumer.hxx.

◆ ~ConfiguredPulseConsumer()

openlcb::ConfiguredPulseConsumer::~ConfiguredPulseConsumer ( )

inline

Definition at line 171 of file ConfiguredConsumer.hxx.

Member Function Documentation

◆ apply_configuration()

UpdateAction openlcb::ConfiguredPulseConsumer::apply_configuration	(	int	fd,
		bool	initial_load,
		BarrierNotifiable *	done
	)

inlinevirtual

Notifies the component that there is new configuration available for loading.

The call is made on the main executor, so the call must not block. Reading the given EEPROM device should be fine. Asynchronous operations may be implemented by using a special return status RETRY: the runner will call the same method on the same component once more after the done callback is invoked. This allows implementing state machines.

Parameters

fd	is the file descriptor for the EEPROM file. The current offset in this file is unspecified, callees must do lseek.
initial_load	is true if this is the first load upon starting the binary.
done	must be notified when the call and its dependent actions are complete. No other configuration component will be called until the done callback is invoked.

Returns: any necessary action. If returns UPDATED, then assumes that the configuration change was applied. If returns RETRY, then the same call will be made again after the notifiable is called. If return REINIT_NEEDED or REBOOT_NEEDED then at the end of the configuration update process the node will be reinitialized or rebooted accordingly.

Implements ConfigUpdateListener.

Definition at line 177 of file ConfiguredConsumer.hxx.

◆ do_register()

void openlcb::ConfiguredPulseConsumer::do_register ( )

inlineprivate

Registers the event handler with the global event registry.

Definition at line 202 of file ConfiguredConsumer.hxx.

◆ do_unregister()

void openlcb::ConfiguredPulseConsumer::do_unregister ( )

inlineprivate

Removed registration of this event handler from the global event registry.

Definition at line 210 of file ConfiguredConsumer.hxx.

◆ factory_reset()

void openlcb::ConfiguredPulseConsumer::factory_reset ( int fd )

inlinevirtual

Clears configuration file and resets the configuration settings to factory value.

Parameters

fd	is the file descriptor for the EEPROM file. The current offset in this file is unspecified, callees must do lseek.

Implements ConfigUpdateListener.

Definition at line 194 of file ConfiguredConsumer.hxx.

◆ handle_event_report()

void openlcb::ConfiguredPulseConsumer::handle_event_report	(	const EventRegistryEntry &	registry_entry,
		EventReport *	event,
		BarrierNotifiable *	done
	)

inlineprivatevirtual

Called on incoming EventReport messages.

Parameters

event	stores information about the incoming message. Filled: src_node, event. Mask is always 1 (filled in). state is not filled in.
registry_entry	gives the registry entry for which the current handler is being called.
done	must be notified when the processing is done.

Implements openlcb::EventHandler.

Definition at line 249 of file ConfiguredConsumer.hxx.

◆ handle_identify_consumer()

void openlcb::ConfiguredPulseConsumer::handle_identify_consumer	(	const EventRegistryEntry &	registry_entry,
		EventReport *	event,
		BarrierNotifiable *	done
	)

inlineprivatevirtual

Called on another node sending IdentifyConsumer.

Parameters

event	stores information about the incoming message. Filled: src_node, event, mask=1. Not filled: state.
registry_entry	gives the registry entry for which the current handler is being called.
done	must be notified when the processing is done.

Implements openlcb::EventHandler.

Definition at line 239 of file ConfiguredConsumer.hxx.

◆ handle_identify_global()

void openlcb::ConfiguredPulseConsumer::handle_identify_global	(	const EventRegistryEntry &	registry_entry,
		EventReport *	event,
		BarrierNotifiable *	done
	)

inlineprivatevirtual

Called on the need of sending out identification messages.

Parameters

event	is NULL. This happens on startup, or when a global or addressed IdentifyGlobal message arrives. Might have destination node id!
registry_entry	gives the registry entry for which the current handler is being called.
done	must be notified when the processing is done.

Implements openlcb::EventHandler.

Definition at line 217 of file ConfiguredConsumer.hxx.

◆ poll_33hz()

void openlcb::ConfiguredPulseConsumer::poll_33hz	(	WriteHelper *	helper,
		Notifiable *	done
	)

inlineprivatevirtual

This function will be called approximately 33 times per second by the refresh loop.

It must notify done when it is finished using the writehelper.

Implements openlcb::Polling.

Definition at line 260 of file ConfiguredConsumer.hxx.

◆ SendConsumerIdentified()

void openlcb::ConfiguredPulseConsumer::SendConsumerIdentified	(	EventReport *	event,
		BarrierNotifiable *	done
	)

inlineprivate

Definition at line 228 of file ConfiguredConsumer.hxx.

Member Data Documentation

◆ cfg_

const PulseConsumerConfig openlcb::ConfiguredPulseConsumer::cfg_

private

Definition at line 277 of file ConfiguredConsumer.hxx.

◆ event_

EventId openlcb::ConfiguredPulseConsumer::event_ {0}

private

Definition at line 276 of file ConfiguredConsumer.hxx.

◆ gpio_

const Gpio* openlcb::ConfiguredPulseConsumer::gpio_

private

Definition at line 275 of file ConfiguredConsumer.hxx.

◆ node_

Node* openlcb::ConfiguredPulseConsumer::node_

private

Definition at line 274 of file ConfiguredConsumer.hxx.

◆ pulseLength_

uint8_t openlcb::ConfiguredPulseConsumer::pulseLength_ {1}

private

Definition at line 278 of file ConfiguredConsumer.hxx.

◆ pulseRemaining_

uint8_t openlcb::ConfiguredPulseConsumer::pulseRemaining_ {0}

private

Definition at line 279 of file ConfiguredConsumer.hxx.

The documentation for this class was generated from the following file:

ConfiguredConsumer.hxx
