Base class for single-bit producer and consumer objects. More...

#include <EventHandlerTemplates.hxx>

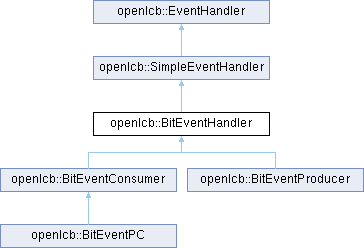

Inheritance diagram for openlcb::BitEventHandler:

Public Member Functions
	BitEventHandler (BitEventInterface *bit)

void	SendEventReport (WriteHelper writer, Notifiable done)
	Requests the event associated with the current value of the bit to be produced (unconditionally): sends an event report packet ot the bus.

Public Member Functions inherited from openlcb::SimpleEventHandler
	IGNOREFN (handle_event_report)

	IGNOREFN (handle_consumer_identified)

	IGNOREFN (handle_consumer_range_identified)

	IGNOREFN (handle_producer_identified)

	IGNOREFN (handle_producer_range_identified)

	IGNOREFN (handle_identify_consumer)

	IGNOREFN (handle_identify_producer)

Public Member Functions inherited from openlcb::EventHandler
virtual void	handle_event_report (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)=0
	Called on incoming EventReport messages.

virtual void	handle_consumer_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)
	Called on another node sending ConsumerIdentified for this event.

virtual void	handle_consumer_range_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)
	Called on another node sending ConsumerRangeIdentified.

virtual void	handle_producer_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)
	Called on another node sending ProducerIdentified for this event.

virtual void	handle_producer_range_identified (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)
	Called on another node sending ProducerRangeIdentified for this event.

virtual void	handle_identify_global (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)=0
	Called on the need of sending out identification messages.

virtual void	handle_identify_consumer (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)=0
	Called on another node sending IdentifyConsumer.

virtual void	handle_identify_producer (const EventRegistryEntry &registry_entry, EventReport event, BarrierNotifiable done)=0
	Called on another node sending IdentifyProducer.

Protected Member Functions
void	register_handler (uint64_t event_on, uint64_t event_off)
	Registers this event handler with the global event manager.

void	unregister_handler ()
	Removes this event handler from the global event manager.

void	SendProducerIdentified (EventReport event, BarrierNotifiable done)
	Sends off two packets using event_write_helper{1,2} of ProducerIdentified for handling a global identify events message.

void	SendConsumerIdentified (EventReport event, BarrierNotifiable done)
	Sends off two packets using event_write_helper{3,4} of ConsumerIdentified for handling a global identify events message.

void	HandlePCIdentify (Defs::MTI mti_valid, EventReport event, BarrierNotifiable done)
	Checks if the event in the report is something we are interested in, and if so, sends off a {Producer\|Consumer}Identified{Valid\|Invalid} message depending on the current state of the hardware bit.

Protected Attributes
BitEventInterface *	bit_

Private Types
enum	{ EVENT_ON = 1 , EVENT_OFF = 2 , BOTH_ON_IS_ZERO = 4 , BOTH_OFF_IS_ZERO = 8 }
	Bits defined in the user_data value for the registrations in this event handler. More...

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (BitEventHandler)

Additional Inherited Members
Public Types inherited from openlcb::EventHandler
using	EventReport = openlcb::EventReport

using	EventRegistryEntry = openlcb::EventRegistryEntry

using	EventId = openlcb::EventId

Detailed Description

Base class for single-bit producer and consumer objects.

Contains helper functions for operations shared by event handlers.

Definition at line 531 of file EventHandlerTemplates.hxx.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

private

Bits defined in the user_data value for the registrations in this event handler.

Enumerator
EVENT_ON	This registration is for a single event_on.
EVENT_OFF	This registration is for a single event_off.
BOTH_ON_IS_ZERO	This registration is for two events, and the lower numbered is the event on.
BOTH_OFF_IS_ZERO	This registration is for two events, and the lower numbered is the event off.

Definition at line 583 of file EventHandlerTemplates.hxx.

Constructor & Destructor Documentation

◆ BitEventHandler()

openlcb::BitEventHandler::BitEventHandler ( BitEventInterface * bit )

Definition at line 542 of file EventHandlerTemplates.cxx.

Member Function Documentation

◆ HandlePCIdentify()

void openlcb::BitEventHandler::HandlePCIdentify	(	Defs::MTI	mti_valid,
		EventReport *	event,
		BarrierNotifiable *	done
	)

protected

Checks if the event in the report is something we are interested in, and if so, sends off a {Producer|Consumer}Identified{Valid|Invalid} message depending on the current state of the hardware bit.

Uses event_write_helper<1>. Notifies done.

Definition at line 619 of file EventHandlerTemplates.cxx.

◆ register_handler()

void openlcb::BitEventHandler::register_handler	(	uint64_t	event_on,
		uint64_t	event_off
	)

protected

Registers this event handler with the global event manager.

Call this from the constructor of the derived class.

Definition at line 546 of file EventHandlerTemplates.cxx.

◆ SendConsumerIdentified()

void openlcb::BitEventHandler::SendConsumerIdentified	(	EventReport *	event,
		BarrierNotifiable *	done
	)

protected

Sends off two packets using event_write_helper{3,4} of ConsumerIdentified for handling a global identify events message.

Allocates children from barrier done (but does not notify it).

@TODO: for consistency of API this function should be changed to notify the barrier. The caller should always use new_child.

Definition at line 589 of file EventHandlerTemplates.cxx.

◆ SendEventReport()

void openlcb::BitEventHandler::SendEventReport	(	WriteHelper *	writer,
		Notifiable *	done
	)

Requests the event associated with the current value of the bit to be produced (unconditionally): sends an event report packet ot the bus.

Parameters

writer	is the output flow to be used.
done	is the notification callback. If it is NULL, the writer will be invoked inline and potentially block the calling thread.

Definition at line 603 of file EventHandlerTemplates.cxx.

◆ SendProducerIdentified()

void openlcb::BitEventHandler::SendProducerIdentified	(	EventReport *	event,
		BarrierNotifiable *	done
	)

protected

Sends off two packets using event_write_helper{1,2} of ProducerIdentified for handling a global identify events message.

Allocates children from barrier done (but does not notify it).

@TODO: for consistency of API this function should be changed to notify the barrier. The caller should always use new_child.

Definition at line 575 of file EventHandlerTemplates.cxx.

◆ unregister_handler()

void openlcb::BitEventHandler::unregister_handler ( )

protected

Removes this event handler from the global event manager.

Call this from the destructor of the derived class.

Definition at line 570 of file EventHandlerTemplates.cxx.

Member Data Documentation

◆ bit_

BitEventInterface* openlcb::BitEventHandler::bit_

protected

Definition at line 578 of file EventHandlerTemplates.hxx.

The documentation for this class was generated from the following files:
