openlcb::BitEventInterface Class Reference

Represents a bit of state using two events. More...

#include <EventHandlerTemplates.hxx>

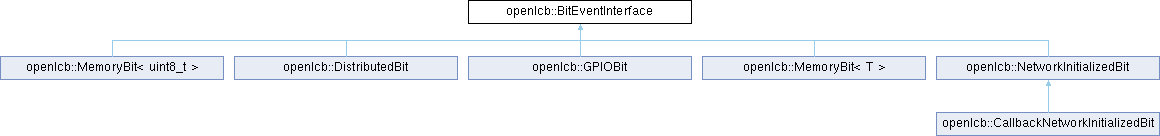

Inheritance diagram for openlcb::BitEventInterface:

Public Member Functions
	BitEventInterface (uint64_t event_on, uint64_t event_off)
virtual EventState	get_current_state ()=0
	returns the current hardware state: true for ON, false for OFF.
virtual EventState	get_requested_state ()
	Get the requested state.
virtual void	set_state (bool new_value)=0
	Updates the hardware for the new event state.
uint64_t	event_on ()
	returns the event ID for representing the state transition OFF->ON.
uint64_t	event_off ()
	returns the event ID for representing the state transition ON->OFF.
virtual Node *	node ()=0
	returns the OpenLCB virtual node from which to send the respective events when the bit changes.

Private Member Functions
	DISALLOW_COPY_AND_ASSIGN (BitEventInterface)

Private Attributes
uint64_t	event_on_
uint64_t	event_off_

Detailed Description

Represents a bit of state using two events.

This class is used as an implementation plugin to various event producers and consumers. It encapsulates application-specific information about the event bit:

• which OpenLCB node this bit is represented on;
• the event identifiers for ON and OFF events;
• how to query the hardware for the current event state;
• how to set the hardware to a new event state.

See BitEventProducer, BitEventConsumer, BitEventPC.

Definition at line 181 of file EventHandlerTemplates.hxx.

Constructor & Destructor Documentation

BitEventInterface()

openlcb::BitEventInterface::BitEventInterface ( uint64_t  event_on, uint64_t  event_off  )

inline

Definition at line 184 of file EventHandlerTemplates.hxx.

Member Function Documentation

event_off()

uint64_t openlcb::BitEventInterface::event_off ( )

inline

returns the event ID for representing the state transition ON->OFF.

Definition at line 213 of file EventHandlerTemplates.hxx.

event_on()

uint64_t openlcb::BitEventInterface::event_on ( )

inline

returns the event ID for representing the state transition OFF->ON.

Definition at line 207 of file EventHandlerTemplates.hxx.

get_current_state()

virtual EventState openlcb::BitEventInterface::get_current_state ( )

pure virtual

returns the current hardware state: true for ON, false for OFF.

Implemented in openlcb::DistributedBit, openlcb::NetworkInitializedBit, openlcb::MemoryBit< T >, openlcb::MemoryBit< uint8_t >, and openlcb::GPIOBit.

get_requested_state()

virtual EventState openlcb::BitEventInterface::get_requested_state ( )

inlinevirtual

Get the requested state.

@TODO(stbaker): document the difference between requested state and current state.

Returns

requested state

Reimplemented in openlcb::DistributedBit.

Definition at line 196 of file EventHandlerTemplates.hxx.

node()

virtual Node * openlcb::BitEventInterface::node ( )

pure virtual

returns the OpenLCB virtual node from which to send the respective events when the bit changes.

Implemented in openlcb::DistributedBit, openlcb::NetworkInitializedBit, openlcb::MemoryBit< T >, openlcb::MemoryBit< uint8_t >, and openlcb::GPIOBit.

set_state()

virtual void openlcb::BitEventInterface::set_state ( bool  new_value )

pure virtual

Updates the hardware for the new event state.

Parameters

new_value

is true for state ON, false for state OFF.

Implemented in openlcb::DistributedBit, openlcb::NetworkInitializedBit, openlcb::CallbackNetworkInitializedBit, openlcb::MemoryBit< T >, openlcb::MemoryBit< uint8_t >, and openlcb::GPIOBit.

Member Data Documentation

event_off_

uint64_t openlcb::BitEventInterface::event_off_

private

Definition at line 224 of file EventHandlerTemplates.hxx.

event_on_

uint64_t openlcb::BitEventInterface::event_on_

private

Definition at line 223 of file EventHandlerTemplates.hxx.

---

The documentation for this class was generated from the following file:

• EventHandlerTemplates.hxx
