openlcb::AMEQueryHandler Class Reference

This class listens for alias mapping enquiry frames targeted for local nodes, and replies with AMD frames. More...

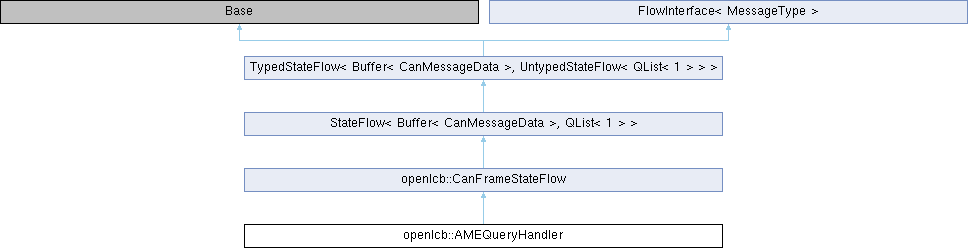

Inheritance diagram for openlcb::AMEQueryHandler:

Public Types
enum	{ CAN_FILTER , CAN_MASK }
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Public Member Functions
	AMEQueryHandler (IfCan *service)
Action	entry () OVERRIDE
	Entry into the StateFlow activity.
Public Member Functions inherited from openlcb::CanFrameStateFlow
	CanFrameStateFlow (IfCan *service)
IfCan *	if_can ()
Public Member Functions inherited from StateFlow< Buffer< CanMessageData >, QList< 1 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Additional Inherited Members
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.

Detailed Description

This class listens for alias mapping enquiry frames targeted for local nodes, and replies with AMD frames.

Definition at line 302 of file IfCan.cxx.

Member Enumeration Documentation

anonymous enum

anonymous enum

Definition at line 305 of file IfCan.cxx.

Constructor & Destructor Documentation

AMEQueryHandler()

openlcb::AMEQueryHandler::AMEQueryHandler ( IfCan *  service )

inline

Definition at line 314 of file IfCan.cxx.

~AMEQueryHandler()

openlcb::AMEQueryHandler::~AMEQueryHandler ( )

inline

Definition at line 321 of file IfCan.cxx.

Member Function Documentation

entry()

Action openlcb::AMEQueryHandler::entry ( )

inlinevirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns

function pointer to next state

Implements TypedStateFlow< MessageType, Base >.

Definition at line 327 of file IfCan.cxx.

---

The documentation for this class was generated from the following file:

• IfCan.cxx
