StateFlow that accepts dcc::Packet structures and sends them to a local device driver for producing the track signal. More...

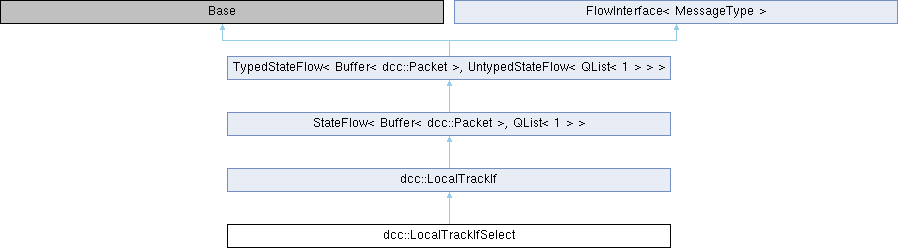

Inheritance diagram for dcc::LocalTrackIfSelect:

Public Member Functions
	LocalTrackIfSelect (Service *service, int pool_size)
	Constructs a TrackInterface from an fd to the mainline.

Public Member Functions inherited from dcc::LocalTrackIf
	LocalTrackIf (Service *service, int pool_size)
	Constructs a TrackInterface from an fd to the mainline.

FixedPool *	pool () OVERRIDE

void	set_fd (int fd)
	You must call this function before sending any packets.

Public Member Functions inherited from StateFlow< Buffer< dcc::Packet >, QList< 1 > >
	StateFlow (Service *service)
	Constructor.

Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.

virtual	~TypedStateFlow ()
	Destructor.

void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.

Public Member Functions inherited from FlowInterface< MessageType >
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Protected Member Functions
Action	entry () OVERRIDE
	Entry into the StateFlow activity.

Protected Member Functions inherited from dcc::LocalTrackIf
Action	finish ()

Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.

void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.

MessageType *	message ()

MessageType *	transfer_message ()
	Releases ownership of the current message.

Protected Attributes
StateFlowSelectHelper	helper_ {this}
	Helper class for select() ing the target device.

Protected Attributes inherited from dcc::LocalTrackIf
int	fd_
	Filedes of the device to which we are writing the generated packets.

FixedPool	pool_
	Packet pool from which to allocate packets.

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Detailed Description

StateFlow that accepts dcc::Packet structures and sends them to a local device driver for producing the track signal.

The device driver must support the select() model.

Definition at line 96 of file LocalTrackIf.hxx.

Constructor & Destructor Documentation

dcc::LocalTrackIfSelect::LocalTrackIfSelect	(	Service *	service,
		int	pool_size
	)

inline

Constructs a TrackInterface from an fd to the mainline.

Parameters

service	Usually the main executor.
pool_size	will determine how many packets the current flow's alloc() will have.

Definition at line 105 of file LocalTrackIf.hxx.

StateFlowBase::Action dcc::LocalTrackIfSelect::entry ( )

protectedvirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Reimplemented from dcc::LocalTrackIf.

Definition at line 81 of file LocalTrackIf.cxx.

StateFlowSelectHelper dcc::LocalTrackIfSelect::helper_ {this}

protected

Helper class for select() ing the target device.

Definition at line 114 of file LocalTrackIf.hxx.

The documentation for this class was generated from the following files:
