dcc::FakeTrackIf Class Reference

StateFlow that accepts dcc::Packet structures and drops them to the floor. More...

#include <FakeTrackIf.hxx>

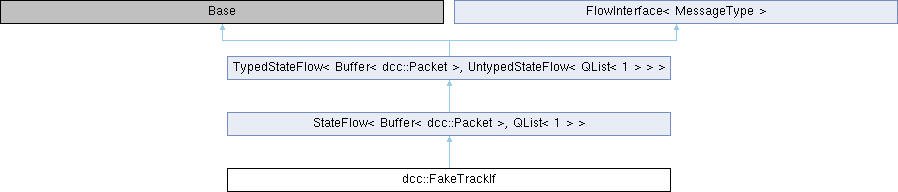

Inheritance diagram for dcc::FakeTrackIf:

Public Member Functions
	FakeTrackIf (Service *service, int pool_size)
	Constructor.
FixedPool *	pool () OVERRIDE
Public Member Functions inherited from StateFlow< Buffer< dcc::Packet >, QList< 1 > >
	StateFlow (Service *service)
	Constructor.
Public Member Functions inherited from TypedStateFlow< MessageType, Base >
	TypedStateFlow (Service *service)
	Constructor.
virtual	~TypedStateFlow ()
	Destructor.
void	send (MessageType *msg, unsigned priority=UINT_MAX) OVERRIDE
	Sends a message to the state flow for processing.
Public Member Functions inherited from FlowInterface< MessageType >
virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.
MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.
void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Protected Member Functions
Action	entry () OVERRIDE
	Entry into the StateFlow activity.
Action	finish ()
	Do nothing.
Protected Member Functions inherited from TypedStateFlow< MessageType, Base >
void	release () OVERRIDE
	Unrefs the current buffer.
void	return_buffer ()
	For state flows that are operated using invoke_subflow_and_wait this is a way to hand back the buffer to the caller.
MessageType *	message ()
MessageType *	transfer_message ()
	Releases ownership of the current message.

Protected Attributes
FixedPool	pool_
	Pool of unallocated packets.
StateFlowTimer	timer_ {this}
	Helper object for timing.

Additional Inherited Members
Public Types inherited from TypedStateFlow< MessageType, Base >
typedef Base::Action	Action
	Allows using Action without having StateFlowBase:: prefix in front of it.
Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.
Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Detailed Description

StateFlow that accepts dcc::Packet structures and drops them to the floor.

Definition at line 47 of file FakeTrackIf.hxx.

Constructor & Destructor Documentation

FakeTrackIf()

dcc::FakeTrackIf::FakeTrackIf ( Service *  service, int  pool_size  )

inline

Constructor.

Parameters

service	defines which executor *this should be running on.
pool_size	how many packets we should generate ahead of time.

Definition at line 54 of file FakeTrackIf.hxx.

Member Function Documentation

entry()

Action dcc::FakeTrackIf::entry ( )

inlineprotectedvirtual

Entry into the StateFlow activity.

Pure virtual which must be defined by derived class.

Returns

function pointer to next state

Implements TypedStateFlow< MessageType, Base >.

Definition at line 66 of file FakeTrackIf.hxx.

finish()

Action dcc::FakeTrackIf::finish ( )

inlineprotected

Do nothing.

Returns

next action.

Definition at line 72 of file FakeTrackIf.hxx.

pool()

FixedPool * dcc::FakeTrackIf::pool ( )

inlinevirtual

Returns

the buffer pool to use for sending messages to this flow. This is to be used as a hint, the caller is allowed to send buffers from different source.

Todo:

(stbaker) change this to Pool* once it supports async alloc.

Reimplemented from FlowInterface< MessageType >.

Definition at line 60 of file FakeTrackIf.hxx.

Member Data Documentation

pool_

FixedPool dcc::FakeTrackIf::pool_

protected

Pool of unallocated packets.

Definition at line 78 of file FakeTrackIf.hxx.

timer_

StateFlowTimer dcc::FakeTrackIf::timer_ {this}

protected

Helper object for timing.

Definition at line 80 of file FakeTrackIf.hxx.

---

The documentation for this class was generated from the following file:

• FakeTrackIf.hxx
