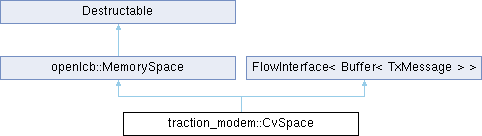

Inheritance diagram for traction_modem::CvSpace:

Public Member Functions
	CvSpace (PacketFlowInterface *tx)

address_t	max_address () override

bool	read_only () override

size_t	write (address_t destination, const uint8_t data, size_t len, errorcode_t error, Notifiable *again) override

size_t	read (address_t source, uint8_t dst, size_t len, errorcode_t error, Notifiable *again) override

void	send (Buffer< TxMessage > *buf, unsigned prio) override
	Handles messages coming back from the decoder via the traction modem protocol.

void	handle_read_response (TxMessage &txm)

void	handle_write_response (TxMessage &txm)

Public Member Functions inherited from openlcb::MemorySpace
virtual bool	set_node (Node *node)
	Specifies which node the next operation pertains.

virtual address_t	min_address ()

virtual errorcode_t	freeze ()
	Handles space freeze command.

virtual errorcode_t	unfreeze ()
	Handles space unfreeze command.

Public Member Functions inherited from FlowInterface< MessageType >
virtual Pool *	pool ()

virtual void	send (MessageType *message, unsigned priority=UINT_MAX)=0
	Entry point to the flow.

virtual MessageType *	type_helper ()
	This function is never user in the code, but GDB can use it to infer the correct message types.

MessageType *	alloc ()
	Synchronously allocates a message buffer from the pool of this flow.

void	alloc_async (Executable *target)
	Asynchronously allocates a message buffer from the pool of this flow.

Public Attributes
bool	pendingRead_: 1
	true if we are waiting for a read response

bool	doneRead_: 1
	true if we the read response arrived

bool	pendingWrite_: 1
	true if we are waiting for a write response

bool	doneWrite_: 1
	true if we the write response arrived

uint16_t	errorCode_ = 0
	Returned error code from the backend.

uint8_t *	readBuf_ = nullptr
	Where to put the bytes read.

unsigned	actualLen_ = 0
	How many bytes to put there.

Notifiable *	done_ = nullptr
	Notifiable to mark when the pending read/write completes.

PacketFlowInterface *	txFlow_
	We send outgoing packets to the decoder using this interface.

Static Public Attributes
static constexpr uint8_t	proxySpace_ = openlcb::MemoryConfigDefs::SPACE_DCC_CV
	This is the memory space we will be using on the decoder.

Static Public Attributes inherited from openlcb::MemorySpace
static const errorcode_t	ERROR_AGAIN = 0x3FFF
	This error code signals that the operation was only partially completed, the again notify was used and will be notified when the operation can be re-tried).

Additional Inherited Members
Public Types inherited from openlcb::MemorySpace
typedef uint32_t	address_t

typedef uint16_t	errorcode_t

Public Types inherited from FlowInterface< MessageType >
typedef MessageType	message_type
	Stores the message template type for external reference.

Static Public Member Functions inherited from FlowInterface< MessageType >
static MessageType *	cast_alloc (QMember *entry)
	Down casts and initializes an asynchronous allocation result to the appropriate flow's buffer type.

Detailed Description

Definition at line 421 of file TractionModem.hxx.

Constructor & Destructor Documentation

◆ CvSpace()

traction_modem::CvSpace::CvSpace ( PacketFlowInterface * tx )

inline

Definition at line 424 of file TractionModem.hxx.

Member Function Documentation

◆ handle_read_response()

void traction_modem::CvSpace::handle_read_response ( TxMessage & txm )

inline

Definition at line 518 of file TractionModem.hxx.

◆ handle_write_response()

void traction_modem::CvSpace::handle_write_response ( TxMessage & txm )

inline

Definition at line 535 of file TractionModem.hxx.

◆ max_address()

address_t traction_modem::CvSpace::max_address ( )

inlineoverridevirtual

Returns: the largest valid address for this block. A read of 1 from this address should succeed in returning the last byte.

Implements openlcb::MemorySpace.

Definition at line 432 of file TractionModem.hxx.

◆ read()

size_t traction_modem::CvSpace::read	(	address_t	source,
		uint8_t *	dst,
		size_t	len,
		errorcode_t *	error,
		Notifiable *	again
	)

inlineoverridevirtual

Returns: the number of bytes successfully read (before hitting end of space). If *error is set to non-null, then the operation has failed. If the operation needs to be continued, then sets error to ERROR_AGAIN, and calls the Notifiable

Parameters

again when a re-try makes sense. The caller should call read once more, with the offset adjusted with the previously returned bytes.

Implements openlcb::MemorySpace.

Definition at line 466 of file TractionModem.hxx.

◆ read_only()

bool traction_modem::CvSpace::read_only ( )

inlineoverridevirtual

Returns: whether the memory space does not accept writes.

Reimplemented from openlcb::MemorySpace.

Definition at line 438 of file TractionModem.hxx.

◆ send()

void traction_modem::CvSpace::send	(	Buffer< TxMessage > *	buf,
		unsigned	prio
	)

inlineoverride

Handles messages coming back from the decoder via the traction modem protocol.

Definition at line 491 of file TractionModem.hxx.

◆ write()

size_t traction_modem::CvSpace::write	(	address_t	destination,
		const uint8_t *	data,
		size_t	len,
		errorcode_t *	error,
		Notifiable *	again
	)

inlineoverridevirtual

Returns: the number of bytes successfully written (before hitting end of space). If *error is set to non-null, then the operation has failed. If the operation needs to be continued, then sets error to MemorySpace::ERROR_AGAIN, and calls the Notifiable

Parameters

again when a re-try makes sense. The caller should call write once more, with the offset adjusted with the previously returned bytes.

Reimplemented from openlcb::MemorySpace.

Definition at line 443 of file TractionModem.hxx.

Member Data Documentation

◆ actualLen_

unsigned traction_modem::CvSpace::actualLen_ = 0

How many bytes to put there.

When doneRead_, then the number of bytes actually read.

Definition at line 565 of file TractionModem.hxx.

◆ done_

Notifiable* traction_modem::CvSpace::done_ = nullptr

Notifiable to mark when the pending read/write completes.

Definition at line 568 of file TractionModem.hxx.

◆ doneRead_

bool traction_modem::CvSpace::doneRead_

true if we the read response arrived

Definition at line 552 of file TractionModem.hxx.

◆ doneWrite_

bool traction_modem::CvSpace::doneWrite_

true if we the write response arrived

Definition at line 556 of file TractionModem.hxx.

◆ errorCode_

uint16_t traction_modem::CvSpace::errorCode_ = 0

Returned error code from the backend.

Definition at line 559 of file TractionModem.hxx.

◆ pendingRead_

bool traction_modem::CvSpace::pendingRead_

true if we are waiting for a read response

Definition at line 550 of file TractionModem.hxx.

◆ pendingWrite_

bool traction_modem::CvSpace::pendingWrite_

true if we are waiting for a write response

Definition at line 554 of file TractionModem.hxx.

◆ proxySpace_

constexpr uint8_t traction_modem::CvSpace::proxySpace_ = openlcb::MemoryConfigDefs::SPACE_DCC_CV

staticconstexpr

This is the memory space we will be using on the decoder.

Definition at line 547 of file TractionModem.hxx.

◆ readBuf_

uint8_t* traction_modem::CvSpace::readBuf_ = nullptr

Where to put the bytes read.

Definition at line 562 of file TractionModem.hxx.

◆ txFlow_

PacketFlowInterface* traction_modem::CvSpace::txFlow_

We send outgoing packets to the decoder using this interface.

Definition at line 571 of file TractionModem.hxx.

The documentation for this class was generated from the following file:

TractionModem.hxx
