EventRegistry implementation that keeps event handlers in a SortedListMap and filters the event handler calls based on the registered event handler arguments (id/mask). More...

#include <EventHandlerContainer.hxx>

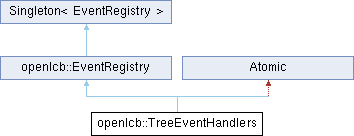

Inheritance diagram for openlcb::TreeEventHandlers:

Classes
struct	cmpop
	Comparison operator for event registry entries. More...

class	Iterator
	Class representing the iteration state on the binary tree-based event handler registry. More...

Public Member Functions
EventIterator *	create_iterator () OVERRIDE
	Creates a new event iterator. Caller takes ownership of object.

void	register_handler (const EventRegistryEntry &entry, unsigned mask) OVERRIDE
	Adds a new event handler to the registry.

void	unregister_handler (EventHandler *handler, uint32_t user_arg=0, uint32_t user_arg_mask=0) OVERRIDE
	Removes all registered instances of a given event handler pointer.

void	reserve (size_t count) OVERRIDE
	Prepares storage for adding many event handlers.

Public Member Functions inherited from openlcb::EventRegistry
unsigned	get_epoch ()
	Returns a monotonically increasing number that will change every time the set of registered event handlers change.

Private Types
typedef SortedListSet< EventRegistryEntry, cmpop >	OneMaskMap

typedef std::map< uint8_t, OneMaskMap >	MaskLookupMap

Private Attributes
MaskLookupMap	handlers_
	The registered handlers.

Friends
class	Iterator

Additional Inherited Members
Static Public Member Functions inherited from openlcb::EventRegistry
static unsigned	align_mask (EventId *event, unsigned size)
	Computes the alignment mask for registering an event range.

Static Public Member Functions inherited from Singleton< EventRegistry >
static EventRegistry *	instance ()

static bool	exists ()

Protected Member Functions inherited from openlcb::EventRegistry
void	set_dirty ()
	Implementations must call this function from register and unregister handler to mark iterators being invalidated.

Private Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Detailed Description

EventRegistry implementation that keeps event handlers in a SortedListMap and filters the event handler calls based on the registered event handler arguments (id/mask).

Definition at line 150 of file EventHandlerContainer.hxx.

Member Typedef Documentation

◆ MaskLookupMap

typedef std::map<uint8_t, OneMaskMap> openlcb::TreeEventHandlers::MaskLookupMap

private

Definition at line 183 of file EventHandlerContainer.hxx.

◆ OneMaskMap

typedef SortedListSet<EventRegistryEntry, cmpop> openlcb::TreeEventHandlers::OneMaskMap

private

Definition at line 182 of file EventHandlerContainer.hxx.

Constructor & Destructor Documentation

◆ TreeEventHandlers()

openlcb::TreeEventHandlers::TreeEventHandlers ( )

Definition at line 159 of file EventHandlerContainer.cxx.

Member Function Documentation

◆ create_iterator()

EventIterator * openlcb::TreeEventHandlers::create_iterator ( )

virtual

Creates a new event iterator. Caller takes ownership of object.

Implements openlcb::EventRegistry.

Definition at line 154 of file EventHandlerContainer.cxx.

◆ register_handler()

void openlcb::TreeEventHandlers::register_handler	(	const EventRegistryEntry &	entry,
		unsigned	mask
	)

virtual

Adds a new event handler to the registry.

Parameters

entry	is the structure parametrizingthe registration.
mask	is used for registering consecutive events; zero for registering just one event; otherwise use {align_mask} to compute the base value and mask to use for registering a range of events.

Implements openlcb::EventRegistry.

Definition at line 42 of file EventHandlerContainer.cxx.

◆ reserve()

void openlcb::TreeEventHandlers::reserve ( size_t count )

virtual

Prepares storage for adding many event handlers.

Parameters

count how many empty slots to reserve.

Reimplemented from openlcb::EventRegistry.

Definition at line 74 of file EventHandlerContainer.cxx.

◆ unregister_handler()

void openlcb::TreeEventHandlers::unregister_handler	(	EventHandler *	handler,
		uint32_t	user_arg = `0`,
		uint32_t	user_arg_mask = `0`
	)

virtual

Removes all registered instances of a given event handler pointer.

Parameters

handler	the handler for which to unregister entries
user_arg	values of the 32-bit user arg to remove
user_arg_mask	32-bit mask where to verify user_arg being equal

Implements openlcb::EventRegistry.

Definition at line 51 of file EventHandlerContainer.cxx.

Friends And Related Symbol Documentation

◆ Iterator

friend class Iterator

friend

Definition at line 163 of file EventHandlerContainer.hxx.

Member Data Documentation

◆ handlers_

MaskLookupMap openlcb::TreeEventHandlers::handlers_

private

The registered handlers.

The offset in the first map tell us how many bits wide the registration is (it is the mask value in the register call).

Definition at line 187 of file EventHandlerContainer.hxx.
