openlcb::MultiConfiguredPC Class Reference

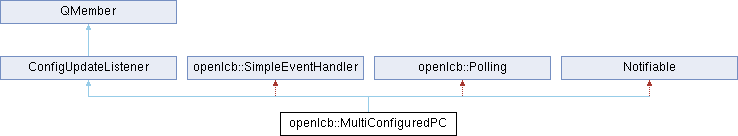

Inheritance diagram for openlcb::MultiConfiguredPC:

Public Types
typedef PCConfig	config_entry_type
typedef QuiesceDebouncer	debouncer_type
Public Types inherited from ConfigUpdateListener
enum	UpdateAction { UPDATED = 0 , REINIT_NEEDED , REBOOT_NEEDED }
	Specifies what additional steps are needed to apply the new configuration. More...

Additional Inherited Members
Public Member Functions inherited from ConfigUpdateListener
virtual UpdateAction	apply_configuration (int fd, bool initial_load, BarrierNotifiable *done)=0
	Notifies the component that there is new configuration available for loading.
virtual void	factory_reset (int fd)=0
	Clears configuration file and resets the configuration settings to factory value.
Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.
Protected Member Functions inherited from QMember
	QMember ()
	Constructor.
	~QMember ()
	Destructor.
Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue
Private Types inherited from openlcb::EventHandler
using	EventReport = openlcb::EventReport
using	EventRegistryEntry = openlcb::EventRegistryEntry
using	EventId = openlcb::EventId
Private Member Functions inherited from openlcb::SimpleEventHandler
	IGNOREFN (handle_event_report)
	IGNOREFN (handle_consumer_identified)
	IGNOREFN (handle_consumer_range_identified)
	IGNOREFN (handle_producer_identified)
	IGNOREFN (handle_producer_range_identified)
	IGNOREFN (handle_identify_consumer)
	IGNOREFN (handle_identify_producer)
Private Member Functions inherited from openlcb::EventHandler
virtual void	handle_event_report (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)=0
	Called on incoming EventReport messages.
virtual void	handle_consumer_identified (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)
	Called on another node sending ConsumerIdentified for this event.
virtual void	handle_consumer_range_identified (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)
	Called on another node sending ConsumerRangeIdentified.
virtual void	handle_producer_identified (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)
	Called on another node sending ProducerIdentified for this event.
virtual void	handle_producer_range_identified (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)
	Called on another node sending ProducerRangeIdentified for this event.
virtual void	handle_identify_global (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)=0
	Called on the need of sending out identification messages.
virtual void	handle_identify_consumer (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)=0
	Called on another node sending IdentifyConsumer.
virtual void	handle_identify_producer (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)=0
	Called on another node sending IdentifyProducer.
Private Member Functions inherited from openlcb::Polling
virtual void	poll_33hz (WriteHelper *helper, Notifiable *done)=0
	This function will be called approximately 33 times per second by the refresh loop.
Private Member Functions inherited from Notifiable
virtual void	notify ()=0
	Generic callback.

Detailed Description

Definition at line 103 of file MultiConfiguredPC.hxx.

Member Typedef Documentation

config_entry_type

typedef PCConfig openlcb::MultiConfiguredPC::config_entry_type

Definition at line 109 of file MultiConfiguredPC.hxx.

debouncer_type

typedef QuiesceDebouncer openlcb::MultiConfiguredPC::debouncer_type

Definition at line 110 of file MultiConfiguredPC.hxx.

---

The documentation for this class was generated from the following file:

• MultiConfiguredPC.hxx
