openlcb::MultiConfiguredConsumer Class Reference

Version of the ConfiguredConsumer class that can handle many GPIO pins with two events each. More...

#include <MultiConfiguredConsumer.hxx>

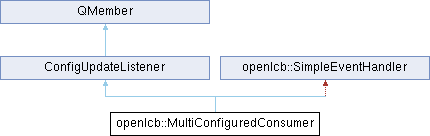

Inheritance diagram for openlcb::MultiConfiguredConsumer:

Public Types
typedef ConsumerConfig	config_entry_type
Public Types inherited from ConfigUpdateListener
enum	UpdateAction { UPDATED = 0 , REINIT_NEEDED , REBOOT_NEEDED }
	Specifies what additional steps are needed to apply the new configuration. More...

Additional Inherited Members
Public Member Functions inherited from ConfigUpdateListener
virtual UpdateAction	apply_configuration (int fd, bool initial_load, BarrierNotifiable *done)=0
	Notifies the component that there is new configuration available for loading.
virtual void	factory_reset (int fd)=0
	Clears configuration file and resets the configuration settings to factory value.
Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.
Protected Member Functions inherited from QMember
	QMember ()
	Constructor.
	~QMember ()
	Destructor.
Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue
Private Types inherited from openlcb::EventHandler
using	EventReport = openlcb::EventReport
using	EventRegistryEntry = openlcb::EventRegistryEntry
using	EventId = openlcb::EventId
Private Member Functions inherited from openlcb::SimpleEventHandler
	IGNOREFN (handle_event_report)
	IGNOREFN (handle_consumer_identified)
	IGNOREFN (handle_consumer_range_identified)
	IGNOREFN (handle_producer_identified)
	IGNOREFN (handle_producer_range_identified)
	IGNOREFN (handle_identify_consumer)
	IGNOREFN (handle_identify_producer)
Private Member Functions inherited from openlcb::EventHandler
virtual void	handle_event_report (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)=0
	Called on incoming EventReport messages.
virtual void	handle_consumer_identified (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)
	Called on another node sending ConsumerIdentified for this event.
virtual void	handle_consumer_range_identified (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)
	Called on another node sending ConsumerRangeIdentified.
virtual void	handle_producer_identified (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)
	Called on another node sending ProducerIdentified for this event.
virtual void	handle_producer_range_identified (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)
	Called on another node sending ProducerRangeIdentified for this event.
virtual void	handle_identify_global (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)=0
	Called on the need of sending out identification messages.
virtual void	handle_identify_consumer (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)=0
	Called on another node sending IdentifyConsumer.
virtual void	handle_identify_producer (const EventRegistryEntry &registry_entry, EventReport *event, BarrierNotifiable *done)=0
	Called on another node sending IdentifyProducer.

Detailed Description

Version of the ConfiguredConsumer class that can handle many GPIO pins with two events each.

This saves very significant amount of memory compared to instantiating individual ConfigredConsumer instances – helpful when a single small MCU is exporting a large number of IOs via for example shift register outputs.

Definition at line 51 of file MultiConfiguredConsumer.hxx.

Member Typedef Documentation

config_entry_type

typedef ConsumerConfig openlcb::MultiConfiguredConsumer::config_entry_type

Definition at line 55 of file MultiConfiguredConsumer.hxx.

---

The documentation for this class was generated from the following file:

• MultiConfiguredConsumer.hxx
