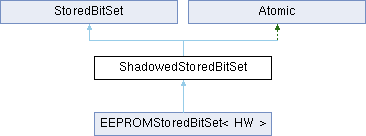

Inheritance diagram for ShadowedStoredBitSet:

Public Member Functions
StoredBitSet &	set_bit (unsigned offset, bool value) override
	Sets an individual bit to a specific value.

bool	get_bit (unsigned offset) override
	Retrieves an individual bit.

StoredBitSet &	set_multi (unsigned offset, unsigned size, unsigned value) override
	Sets a block of consecutive bits.

unsigned	get_multi (unsigned offset, unsigned size) override
	Returns a block of consecutive bits as an integer value.

unsigned	size () override

void	lock_and_flush () override
	Grabs a lock and writes the current values to persistent storage.

Public Member Functions inherited from StoredBitSet
virtual void	flush ()=0
	Writes the current values to persistent storage.

Protected Types
typedef uint8_t	cell_offs_t
	Type indexing cells. Must be an unsigned type.

typedef unsigned	bit_offs_t
	Type indexing all bits.

Protected Member Functions
	ShadowedStoredBitSet (unsigned size, uint8_t granularity)

cell_offs_t	next_dirty ()

void	clear_dirty (cell_offs_t cell)
	Clears the dirty bit for a given cell.

bool	is_dirty (cell_offs_t cell)

cell_offs_t	num_cells ()

Protected Member Functions inherited from Atomic
void	lock ()

void	unlock ()

Static Protected Attributes
static constexpr cell_offs_t	NO_CELL = static_cast<cell_offs_t>(-1)

Private Member Functions
unsigned	dirty_size_uint32 ()

void	update_dirty_bounds (cell_offs_t d)
	updates lowestDirty_ and highestDirty_ for a given cell.

Private Attributes
const unsigned	size_
	Total number of bits.

const uint8_t	granularity_
	How many bits per cell.

cell_offs_t	lowestDirty_ {NO_CELL}
	Helper values for iterating over the dirty bits.

cell_offs_t	highestDirty_ {0}

uint32_t *	shadow_
	Data of the actual bits. length is size_ / 32 rounded up.

uint32_t *	dirty_
	Bit set telling whether the individual cells are dirty or not (i.e.

Detailed Description

Definition at line 91 of file StoredBitSet.hxx.

Member Typedef Documentation

◆ bit_offs_t

typedef unsigned ShadowedStoredBitSet::bit_offs_t

protected

Type indexing all bits.

Definition at line 217 of file StoredBitSet.hxx.

◆ cell_offs_t

typedef uint8_t ShadowedStoredBitSet::cell_offs_t

protected

Type indexing cells. Must be an unsigned type.

Definition at line 215 of file StoredBitSet.hxx.

Constructor & Destructor Documentation

◆ ShadowedStoredBitSet()

ShadowedStoredBitSet::ShadowedStoredBitSet	(	unsigned	size,
		uint8_t	granularity
	)

inlineprotected

Parameters

size	is the total number of bits we store.
granularity	tells how many bits fit into a single cell. The base class will then keep track of dirty cells.

Definition at line 198 of file StoredBitSet.hxx.

◆ ~ShadowedStoredBitSet()

ShadowedStoredBitSet::~ShadowedStoredBitSet ( )

inlineprotected

Definition at line 209 of file StoredBitSet.hxx.

Member Function Documentation

◆ clear_dirty()

void ShadowedStoredBitSet::clear_dirty ( cell_offs_t cell )

inlineprotected

Clears the dirty bit for a given cell.

Parameters

cell	is the number of the cell, 0..num_cells()-1.

Definition at line 254 of file StoredBitSet.hxx.

◆ dirty_size_uint32()

unsigned ShadowedStoredBitSet::dirty_size_uint32 ( )

inlineprivate

Returns: how many uint32 are there in the dirty_ array.

Definition at line 276 of file StoredBitSet.hxx.

◆ get_bit()

bool ShadowedStoredBitSet::get_bit ( unsigned offset )

inlineoverridevirtual

Retrieves an individual bit.

Parameters

offset is the bit number to retrieve.

Returns: the last set bit value.

Implements StoredBitSet.

Definition at line 113 of file StoredBitSet.hxx.

◆ get_multi()

unsigned ShadowedStoredBitSet::get_multi	(	unsigned	offset,
		unsigned	size
	)

inlineoverridevirtual

Returns a block of consecutive bits as an integer value.

Parameters

offset	is the number of the first bit to retrieve.
size	is the number of bits to retrieve.

Returns: the unsigned value that the last set bits represent, with LSB-first (bit 0 will be from offset; bit 1 will be from offset + 1, etc.)

Implements StoredBitSet.

Definition at line 170 of file StoredBitSet.hxx.

◆ is_dirty()

bool ShadowedStoredBitSet::is_dirty ( cell_offs_t cell )

inlineprotected

Returns: true if the given cell is dirty.

Parameters

cell	is the number of the cell, 0..num_cells()-1.

Definition at line 264 of file StoredBitSet.hxx.

◆ lock_and_flush()

void ShadowedStoredBitSet::lock_and_flush ( )

inlineoverridevirtual

Grabs a lock and writes the current values to persistent storage.

Implements StoredBitSet.

Definition at line 189 of file StoredBitSet.hxx.

◆ next_dirty()

cell_offs_t ShadowedStoredBitSet::next_dirty ( )

inlineprotected

Returns: the cell number of the next dirty cell, or NO_CELL if nothing is dirty anymore.

Definition at line 223 of file StoredBitSet.hxx.

◆ num_cells()

cell_offs_t ShadowedStoredBitSet::num_cells ( )

inlineprotected

Returns: how many cells we have, each with granularity_ bits stored.

Definition at line 270 of file StoredBitSet.hxx.

◆ set_bit()

StoredBitSet & ShadowedStoredBitSet::set_bit	(	unsigned	offset,
		bool	value
	)

inlineoverridevirtual

Sets an individual bit to a specific value.

This call is thread-safe.

Parameters

offset	is the bit number to set.
value	is the new value for that bit.

Returns: *this.

Implements StoredBitSet.

Definition at line 94 of file StoredBitSet.hxx.

◆ set_multi()

StoredBitSet & ShadowedStoredBitSet::set_multi	(	unsigned	offset,
		unsigned	size,
		unsigned	value
	)

inlineoverridevirtual

Sets a block of consecutive bits.

This call is thread-safe.

Parameters

offset	is the number of the first bit to set.
size	is the number of bits to set.
value	contains the data to write, LSB (bit 0) goes to "offset", bit 1 goes to offset + 1, etc.; bits at and above size are checked to be zero.

Returns: *this.

Implements StoredBitSet.

Definition at line 118 of file StoredBitSet.hxx.

◆ size()

unsigned ShadowedStoredBitSet::size ( )

inlineoverridevirtual

Returns: the number of bits in the storage. Valid offsets are 0..size()-1.

Implements StoredBitSet.

Definition at line 185 of file StoredBitSet.hxx.

◆ update_dirty_bounds()

void ShadowedStoredBitSet::update_dirty_bounds ( cell_offs_t d )

inlineprivate

updates lowestDirty_ and highestDirty_ for a given cell.

Parameters

d	cell offset to set dirty

Definition at line 282 of file StoredBitSet.hxx.

Member Data Documentation

◆ dirty_

uint32_t* ShadowedStoredBitSet::dirty_

private

Bit set telling whether the individual cells are dirty or not (i.e.

need to be flushed). LSB-first in the individual bits, i.e. bit 1 of entry 2 means that the cell numbered (2*32 + 1) is dirty.

Definition at line 313 of file StoredBitSet.hxx.

◆ granularity_

const uint8_t ShadowedStoredBitSet::granularity_

private

How many bits per cell.

Definition at line 303 of file StoredBitSet.hxx.

◆ highestDirty_

cell_offs_t ShadowedStoredBitSet::highestDirty_ {0}

private

Definition at line 306 of file StoredBitSet.hxx.

◆ lowestDirty_

cell_offs_t ShadowedStoredBitSet::lowestDirty_ {NO_CELL}

private

Helper values for iterating over the dirty bits.

Definition at line 305 of file StoredBitSet.hxx.

◆ NO_CELL

constexpr cell_offs_t ShadowedStoredBitSet::NO_CELL = static_cast<cell_offs_t>(-1)

staticconstexprprotected

Definition at line 219 of file StoredBitSet.hxx.

◆ shadow_

uint32_t* ShadowedStoredBitSet::shadow_

private

Data of the actual bits. length is size_ / 32 rounded up.

Definition at line 309 of file StoredBitSet.hxx.

◆ size_

const unsigned ShadowedStoredBitSet::size_

private

Total number of bits.

Definition at line 301 of file StoredBitSet.hxx.

The documentation for this class was generated from the following file:

StoredBitSet.hxx
