Timer that triggers the parent flow when expiring. More...

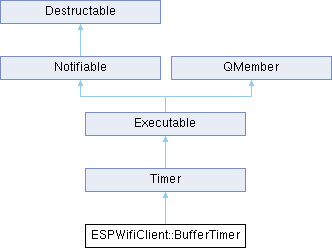

Inheritance diagram for ESPWifiClient::BufferTimer:

Public Member Functions
	BufferTimer (ESPWifiClient *parent)
	Constructor.

long long	timeout () override
	callback when the timer expires.

Public Member Functions inherited from Timer
	Timer (ActiveTimers *timers)
	Constructor.

	~Timer ()
	Destructor.

void	run () override
	Callback from the executor when this timer is scheduled.

long long	schedule_time ()

void	start (long long period=-1)
	Starts a timer.

void	start_absolute (long long expiry_time_nsec)
	Starts the timer with an absolute deadline.

void	restart ()
	Restart a timer with the existing period but from the current time.

void	trigger ()
	This will wakeup the timer prematurely, immediately.

void	ensure_triggered ()
	Triggers the timer if it is not expired yet.

void	cancel ()
	Dangerous, do not call.

bool	is_triggered ()

void	set_triggered ()
	Sets the timer as if it was woken up by a trigger(), even if it was never started.

Public Member Functions inherited from Executable
void	test_deletion ()

void	notify () override
	Crashes the program – everyone who is expecting notify calls must override this function.

virtual void	alloc_result (QMember *item)
	Return the result of an alloc_async() from a memory Pool.

Public Member Functions inherited from QMember
void	init ()
	Initiailize a QMember, in place of a public placement construction.

Additional Inherited Members
Public Types inherited from Timer
enum	{ NONE = 0 , RESTART = 1 , DELETE = -1 }
	Special return values from the timeout function. More...

Protected Member Functions inherited from Timer
void	update_period (long long period)
	Updates the period, to be used after the next expiration of the timer in order to restart it.

Protected Member Functions inherited from QMember
	QMember ()
	Constructor.

	~QMember ()
	Destructor.

Protected Attributes inherited from QMember
QMember *	next
	pointer to the next member in the queue

Detailed Description

Timer that triggers the parent flow when expiring.

Used to flush the accumulated gridconnect bytes to the TCP socket.

Definition at line 339 of file ESPWifiClient.hxx.

Constructor & Destructor Documentation

ESPWifiClient::BufferTimer::BufferTimer ( ESPWifiClient * parent )

inline

Constructor.

Parameters

parent who owns *this.

Definition at line 343 of file ESPWifiClient.hxx.

long long ESPWifiClient::BufferTimer::timeout ( )

inlineoverridevirtual

callback when the timer expires.

Implements Timer.

Definition at line 350 of file ESPWifiClient.hxx.

ESPWifiClient* ESPWifiClient::BufferTimer::parent_

private

parent who owns *this.

Definition at line 356 of file ESPWifiClient.hxx.

The documentation for this class was generated from the following file:
